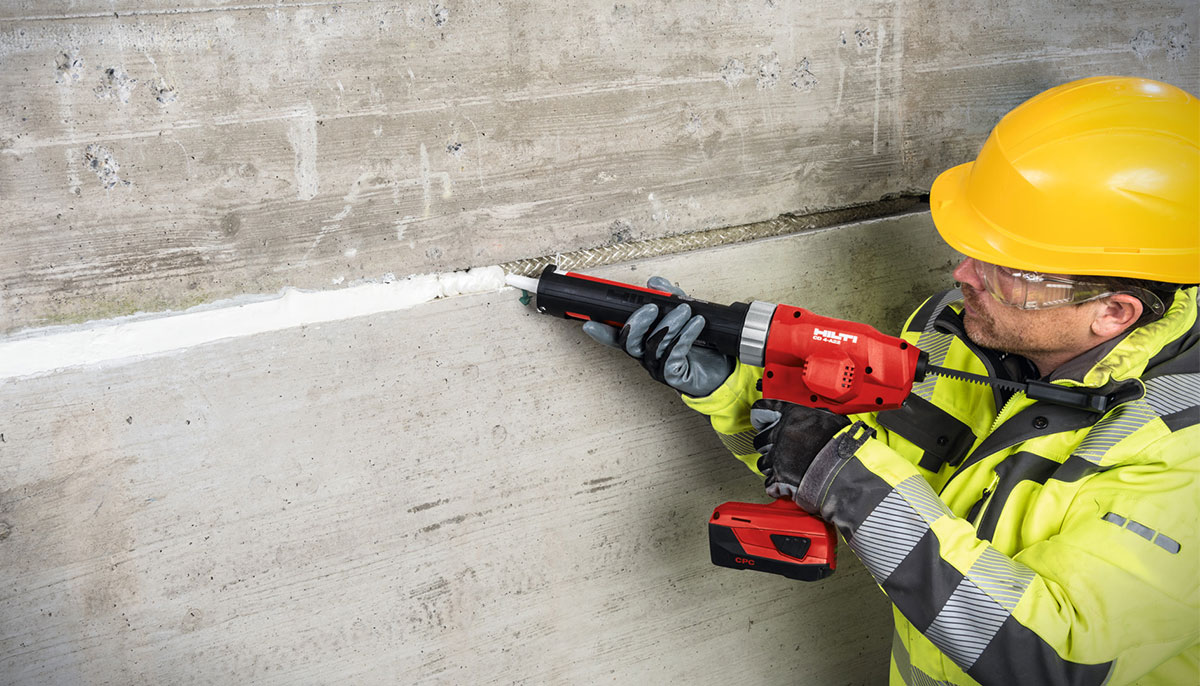

CD 4-A22 Applications

Versatile cordless caulking dispenser

The CD 4-A22 gives you control when dispensing single component sealants and adhesives

Easy to prepare, easy to use. Hilti’s caulking tool lets you control dispensing speed and flow rate for smooth application with minimal waste. Available in two versions either for plastic cartridges or foil packs.

Suitable for a broad range of applications

CP 606, CS 201-P1

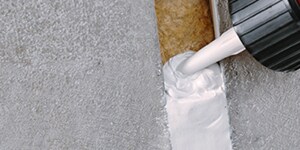

Sealing expansion joints

FS-ONE,CS 201-P1

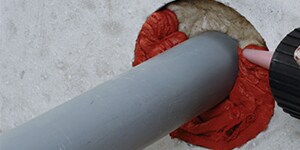

Firestop application

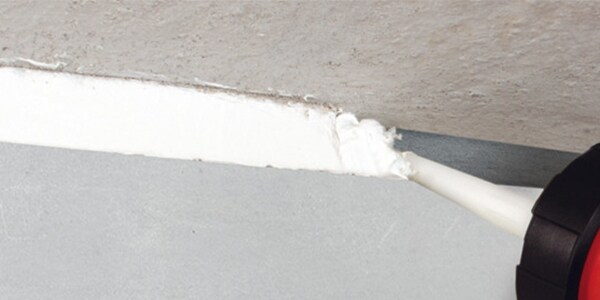

CP 506

Smoke and acoustic sealing

Easy to use with minimal material waste, the CD 4-A22 improves your productivity

CD 4-A22 Cordless Caulking Dispenser

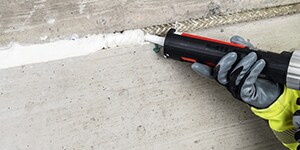

Variable flow control

With a 6-speed dial and variable control trigger you can manage material flow rate according to viscosity for both high volume applications and precision work.

CD 4-A22 Applications

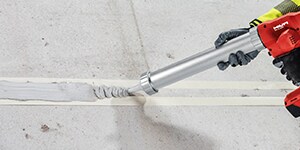

High dispensing force

The dispensing force of 5,000N makes working with high viscosity material easier while also reducing hand/arm strain and addressing health and safety needs.

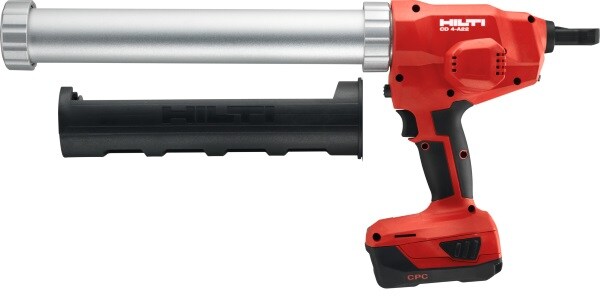

Interchangeable carriages

Interchangeable carriages

With interchangeable carriages for 600 ml and 310 ml packag sizes, you can use the CD 4-A22 with a wide range of adhesives and sealants.

CD 4-A22 Applications

Material management

The combination of flow control and high dispensing force help you to use all of the sealant while reducing overspill or waste.

CD 4-A22 caulking gun for dispensing single component sealants and adhesives

Reducing waste and giving you control

As the range of caulking applications grows from sealants and adhesives to firestop products, so does the requirement for dispensers that do away with the mess, and give you control.

Unblocking clogged nozzles, managing flow rate or cleaning up overspill takes too much of your time – so we've engineered the CD 4-A22 specifically to cut these annoyances out of your day.

With 5,000N of dispensing force and a switchable capacity from 310 ml to 600 ml, you have high flexibility for your working range. The combination of a 6-speed dial for adjustable flow rate and variable speed trigger allow for a precisely controlled flow of sealant or adhesive. Furthermore, the auto-reverse function stops drips and material waste, saving time and money.

The CD 4-A22 is fully compatible with our 22V range of cordless tools, so you can use the batteries you have, without the need to search for an additional power source. When combined with a Hilti B 22/5.2 Ah battery it will continue to perform as long as your working day.



Ease of use for firestop applications

Sealing top-of-wall and bottom-of-wall is important for both firestop and architectural needs. Due to its extremely precise control, the CD 4-A22 is the ideal tool for sealing joints against fire and smoke when you need a visually attractive finish. Additional specifications – such as acoustics or joint movement – can be fulfilled with the right choice of Hilti firestop product.

Cd 4-A22 has two interchangeable assembly sets for maximum flexibility

CD 4-A22 Cordless Caulking Dispenser

Barrel CD 4 long assembly set

Long assembly set comes with an allen key and screw so it can easily be fixed onto the CD 4-A22 for dispensing 600 ml/20 oz. material in foil packs.

More information
CD 4-A22 Cordless Caulking Dispenser

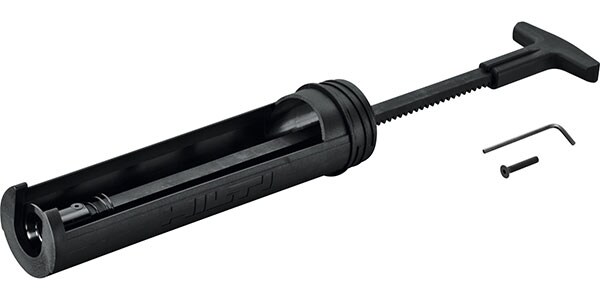

Cartridge CD 4 short assembly set

The short assembly set comes with an allen key and screw so it can easily be fixed onto the CD 4-A22 for dispensing 310 ml/10 oz. material in plastic cartridges.

More information
B22 5.2

B 22/5.2 Li-ion battery pack

Includes fully sealed electronics for increased protection against dust, humidity and water and highest work-per-charge rating in its category.

More information

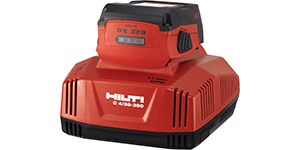

B22 3.0 with C 4/36-350

C 4/36-350 battery charger

Multi-voltage fast charger for all Hilti Li-ion batteries designed to help protect batteries from low voltage and other adverse charging conditions.

More information
